Visual Product Guide

Select a product. Understand its purpose.

Each product family has its own image, plain-language description, common applications and indicative size coverage. Final material, standard, rating, approval and availability are confirmed against the project specification and quotation.

Search the range

Choose a product

26 product families shown

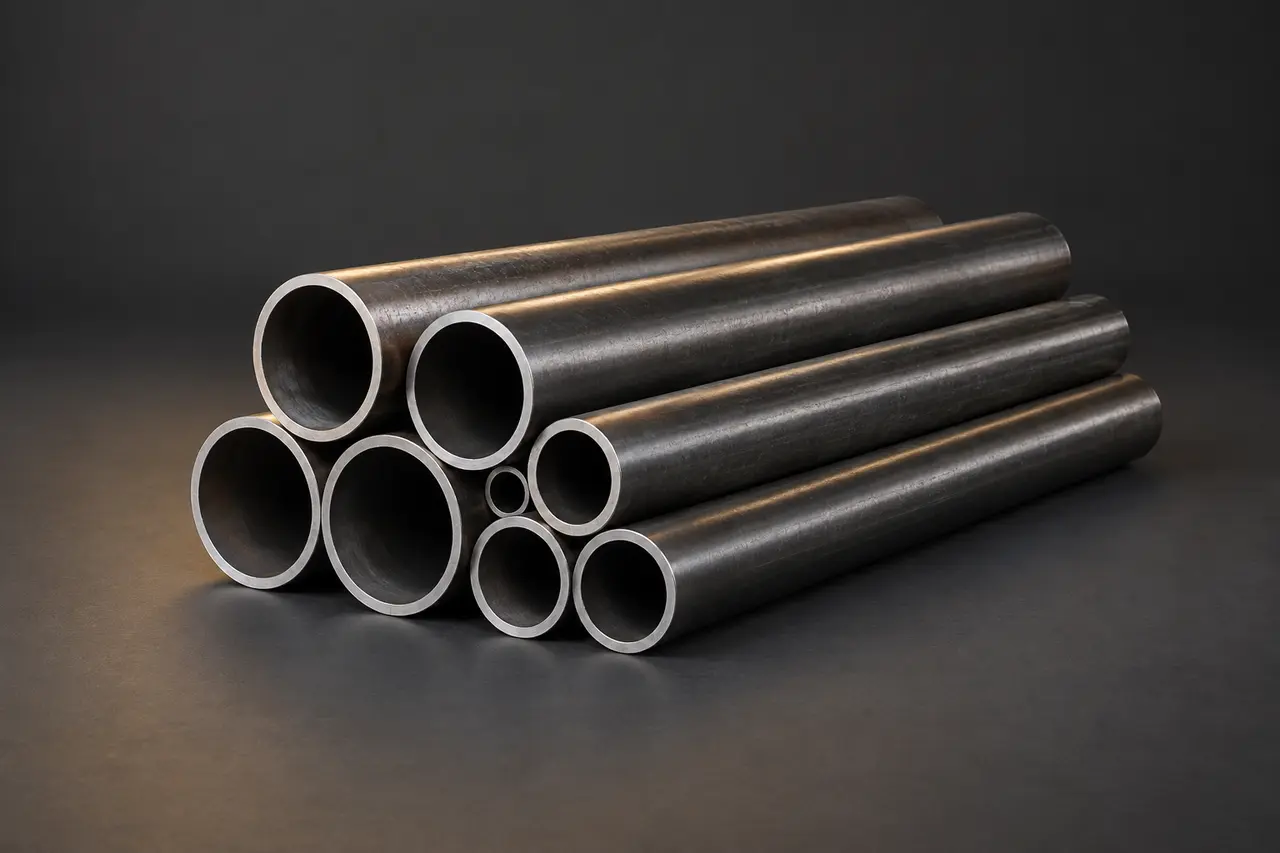

Carbon Steel

Seamless & ERW Pipes

Pressure and utility pipe manufactured without a seam or by electric-resistance welding, selected by grade, outside diameter and wall schedule.

Indicative sizes: NPS ½–24; ERW commonly to NPS 20, larger sizes by manufacturer
Common applications: HVAC water, fire-water where approved, compressed air, utilities and industrial process lines
Specify: ASTM/API grade, seamless or welded construction, schedule, ends, coating and test certificates

Carbon-steel specifications

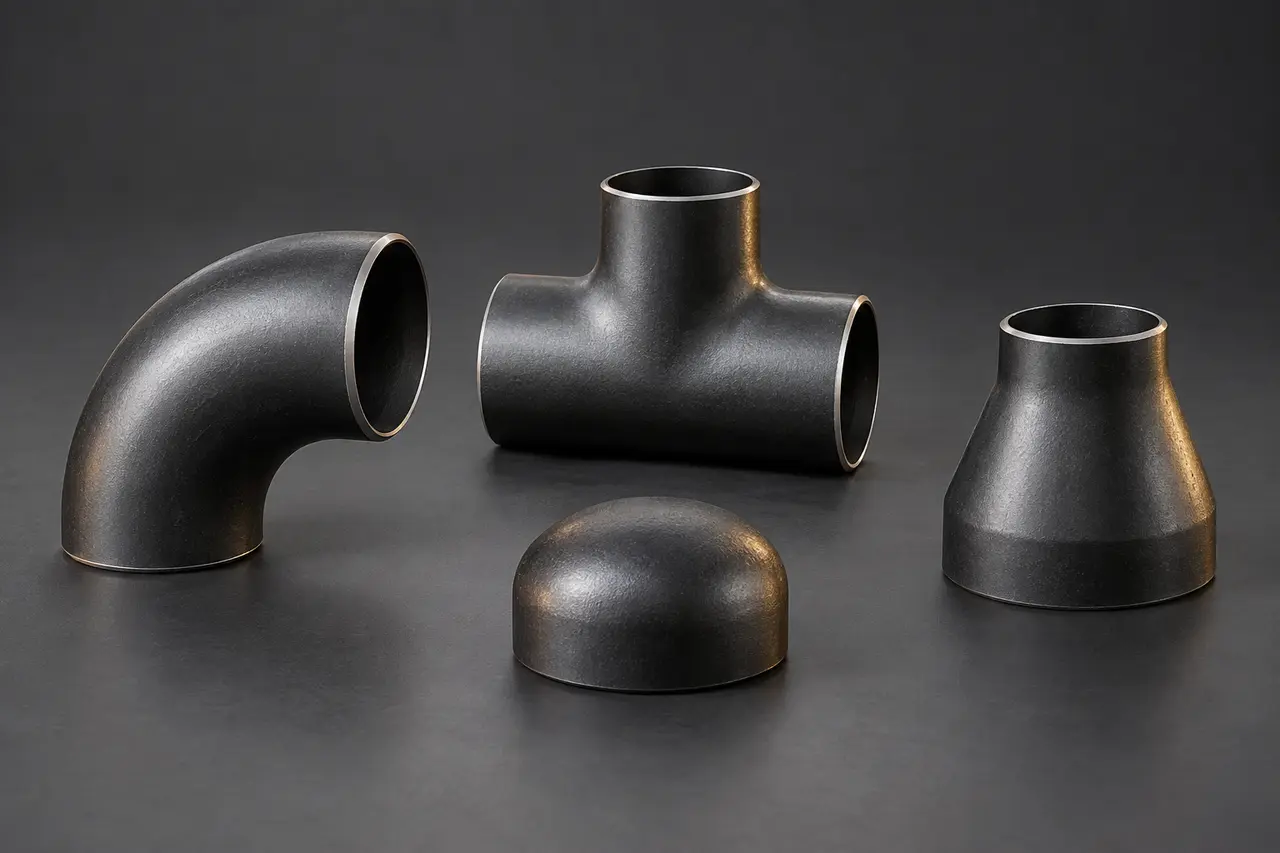

Carbon Steel

Butt-Weld Fittings

Elbows, tees, reducers and caps welded directly into a pipe run to change direction, create a branch, change diameter or terminate the line.

Indicative sizes: NPS ½–24 commonly enquired; ASME B16.9 covers larger manufactured sizes
Common applications: Welded HVAC, fire-water, oil and gas, utility and industrial piping
Specify: ASTM A234 WPB or required grade, size, schedule, fitting form and seamless/welded requirement

Carbon-steel specifications

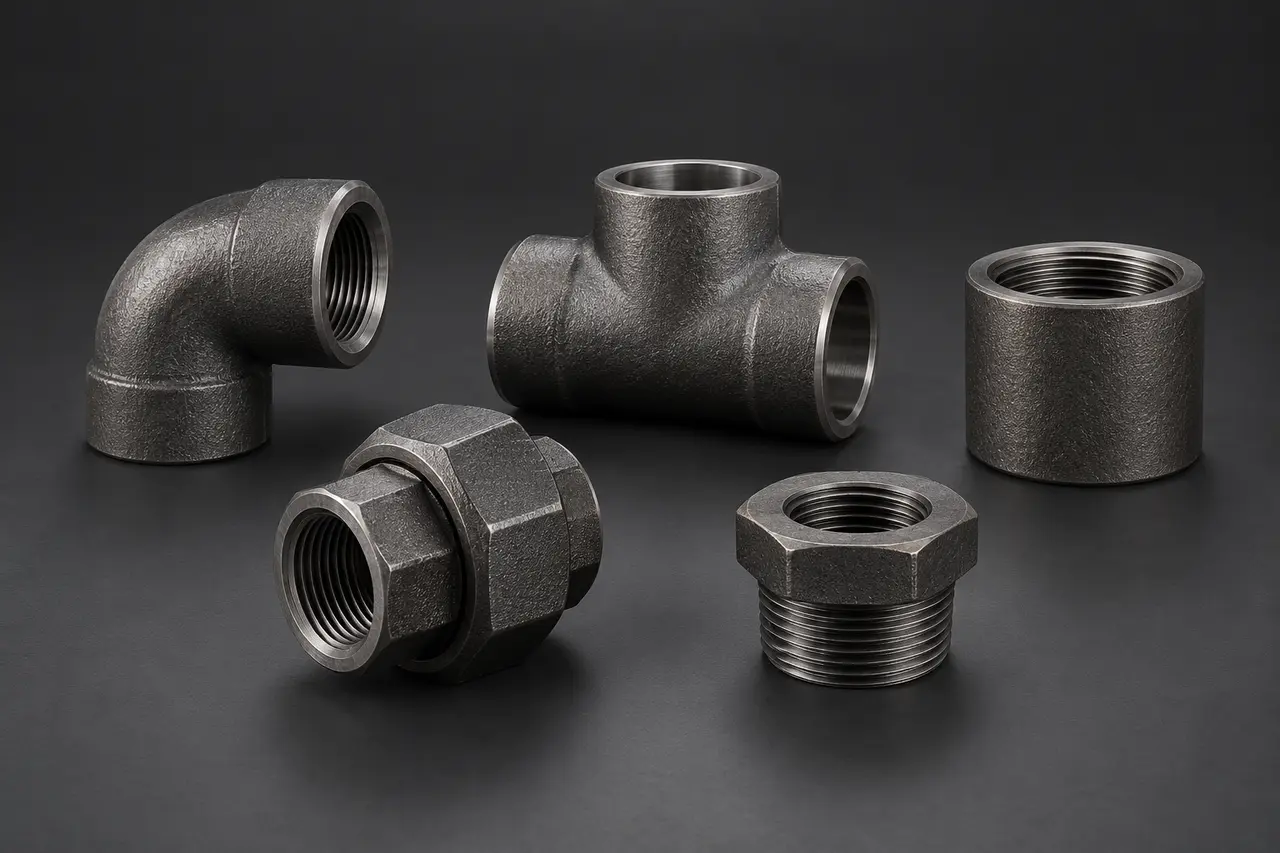

Carbon Steel

Forged Fittings

Compact high-pressure threaded or socket-weld fittings used for small-bore connections, branches, drains, vents and instrument take-offs.

Indicative sizes: NPS ⅛–4, depending on fitting and manufacturer
Common applications: High-pressure small-bore process, steam, utility, drain and instrument piping
Specify: ASTM A105 or required grade, threaded/socket-weld ends, pressure class and thread standard

Carbon-steel specifications

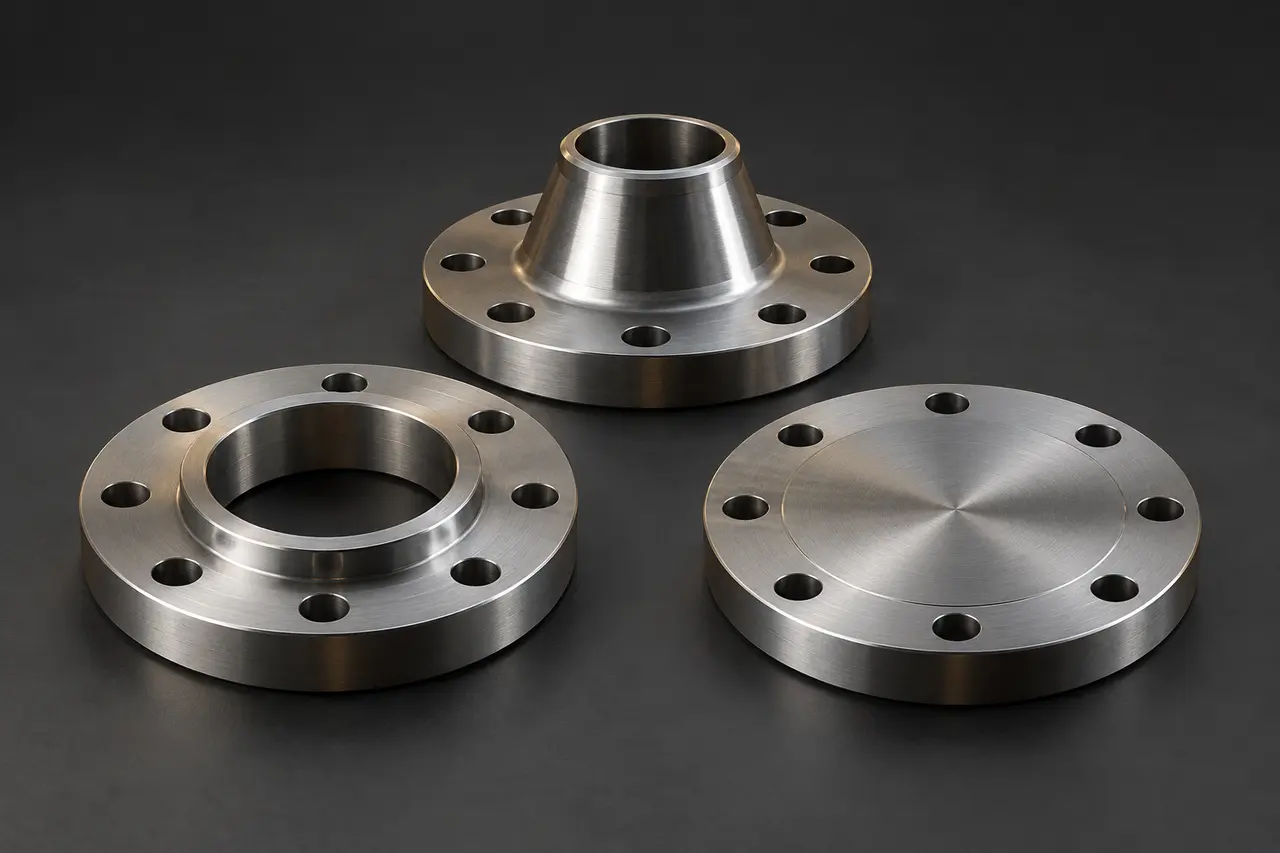

Carbon Steel

Flanges

Bolted pipe-connection components used to join piping to valves, equipment or another flanged spool while allowing future disassembly.

Indicative sizes: NPS ½–24 under ASME B16.5; larger diameters by specified standard and enquiry
Common applications: Valve connections, pumps, equipment nozzles, removable spools and maintenance points
Specify: Type, size, class, facing, bore/schedule, material grade and flange standard

Carbon-steel specifications

Stainless Steel

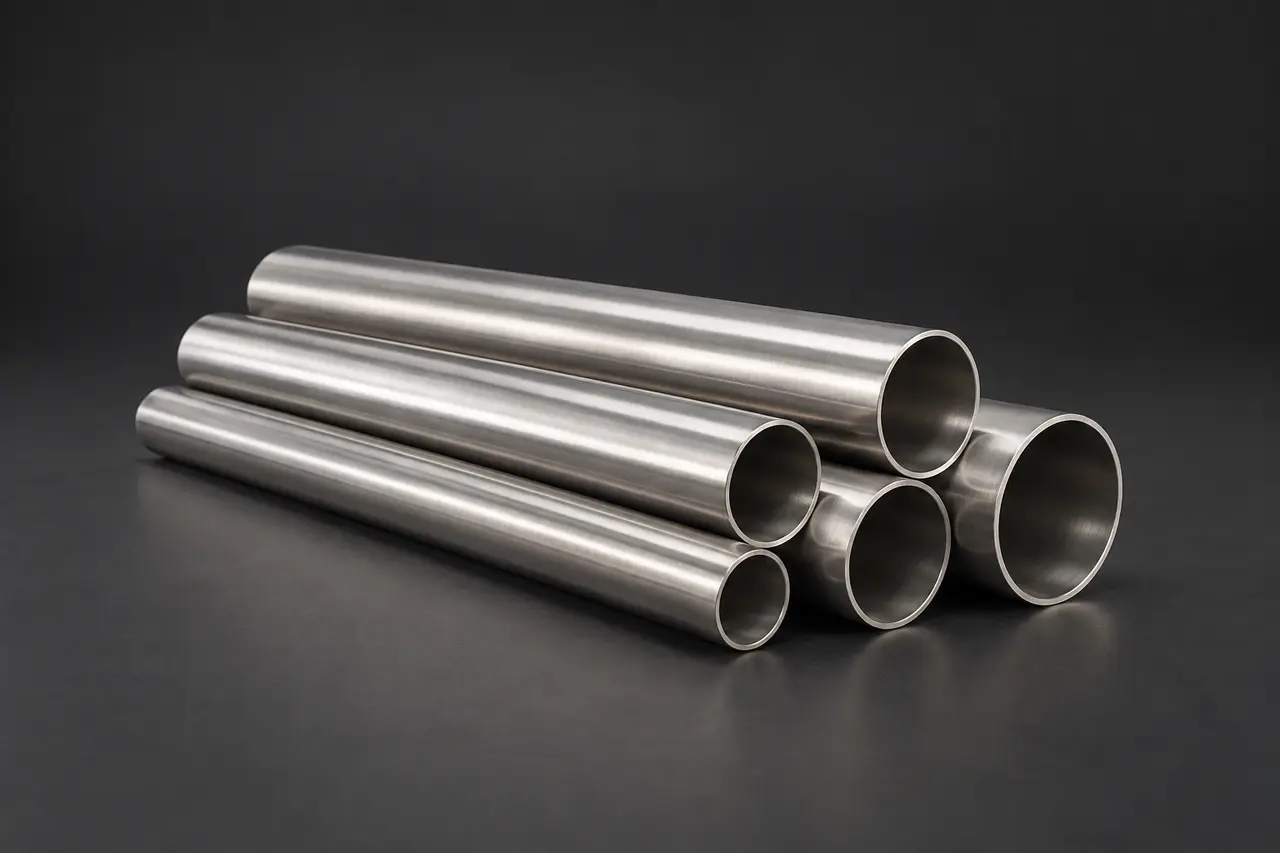

Stainless Steel Pipes

Corrosion-resistant seamless or welded piping selected by alloy grade, wall schedule and surface-finish requirements.

Indicative sizes: NPS ½–24; Sch 5S, 10S, 40S and 80S by standard and availability
Common applications: Water treatment, food and beverage, hygiene-sensitive services, chemical and coastal environments
Specify: 304/304L, 316/316L or required grade, construction, schedule, finish and certificates

Stainless-steel specifications

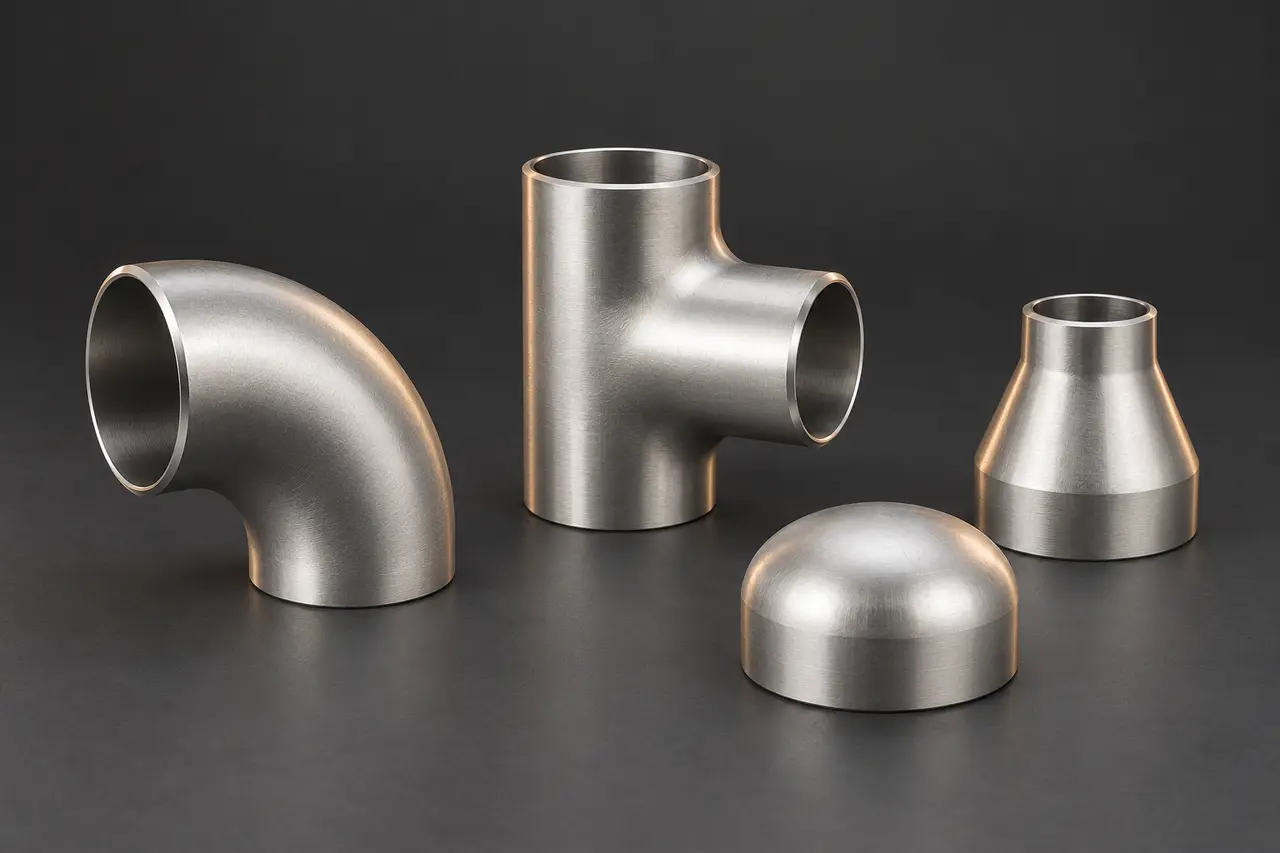

Stainless Steel

Butt-Weld Fittings

Stainless elbows, tees, reducers, caps and stub ends welded into stainless piping while maintaining the specified alloy and wall.

Indicative sizes: NPS ½–24 commonly enquired; wall to match the connected pipe
Common applications: Corrosive, hygienic, water-treatment and process piping systems
Specify: ASTM A403 grade, size, schedule, fitting form, finish and seamless/welded requirement

Stainless-steel specifications

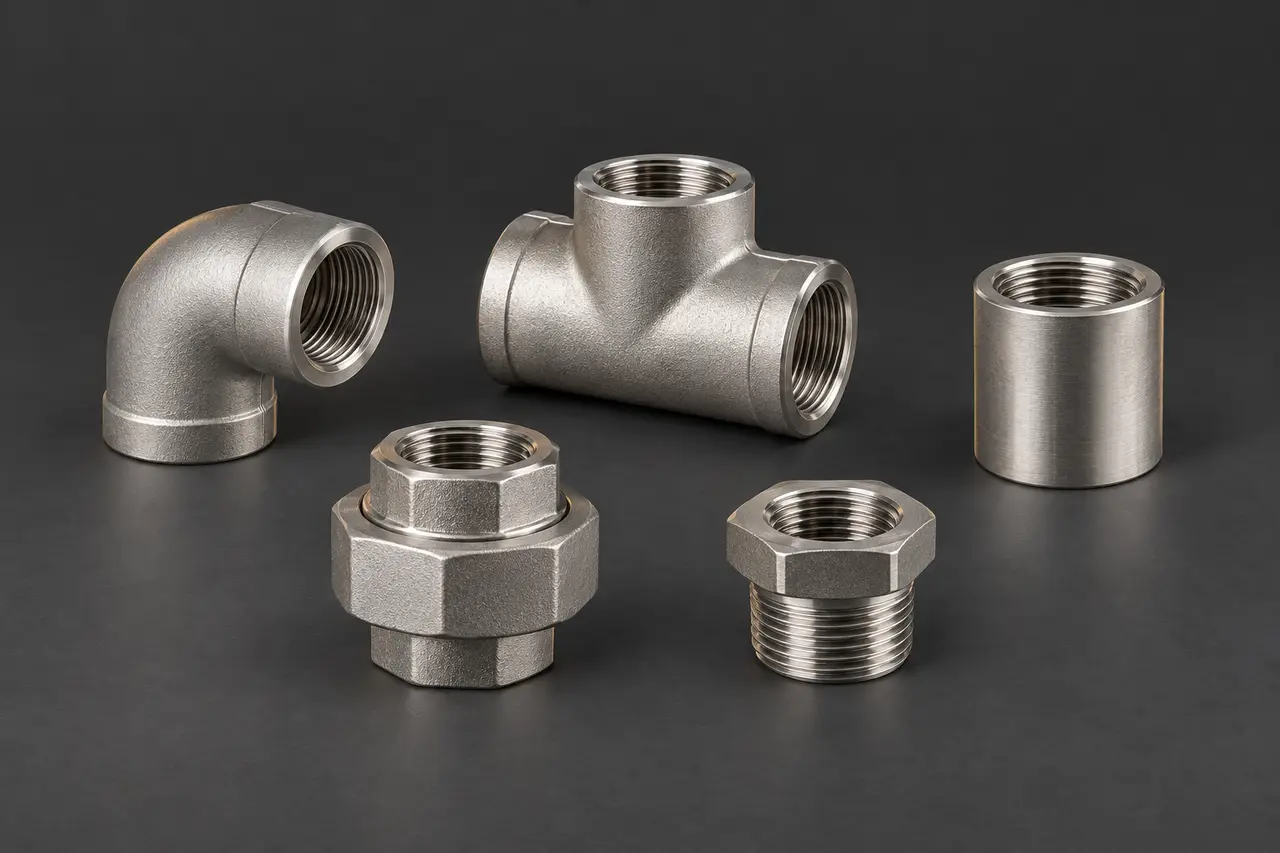

Stainless Steel

Forged Fittings

Compact threaded and socket-weld stainless fittings for small-bore lines where corrosion resistance and defined pressure class are required.

Indicative sizes: NPS ⅛–4, depending on form and pressure class
Common applications: Instrument, process, utility, chemical and high-pressure small-bore services
Specify: ASTM A182 grade, pressure class, end connection, thread form and finish

Stainless-steel specifications

Stainless Steel

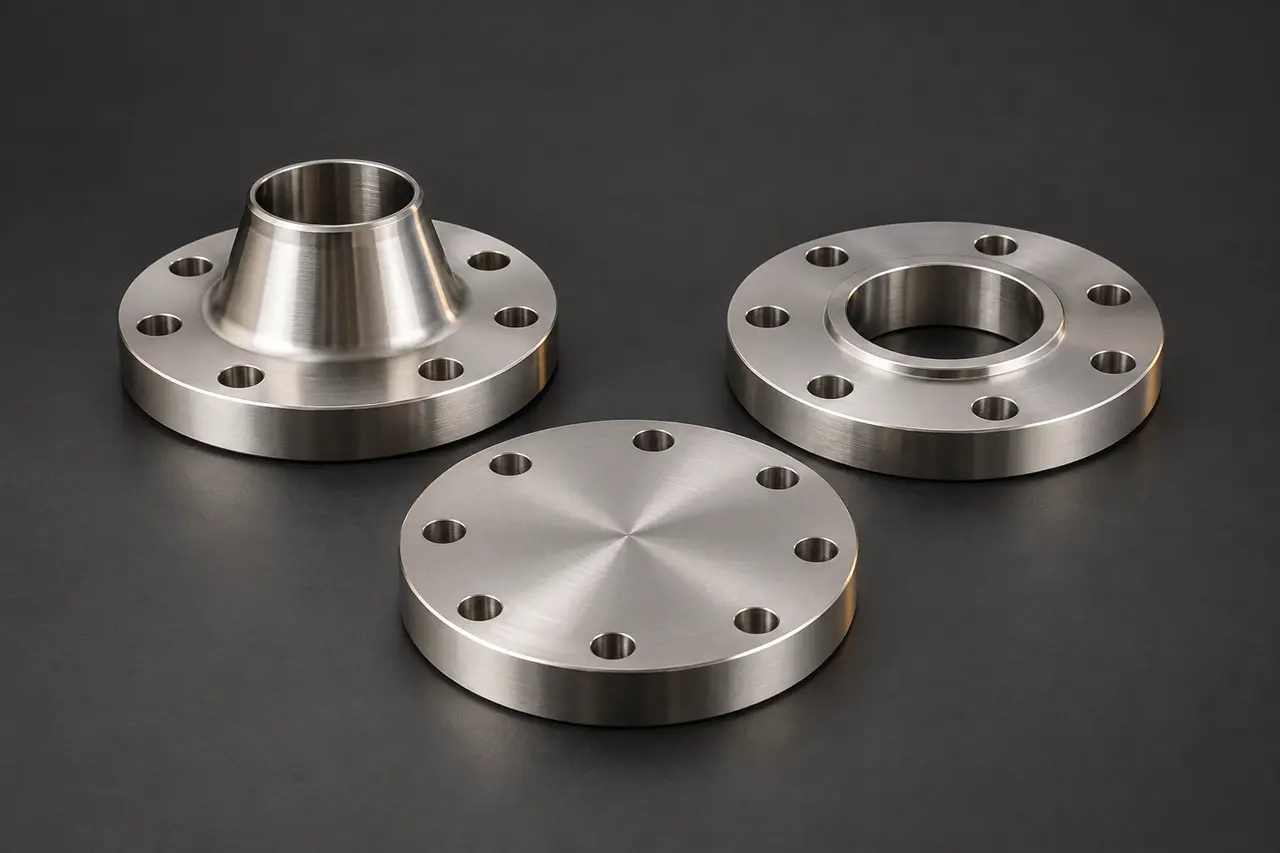

Stainless Steel Flanges

Corrosion-resistant weld-neck, slip-on, blind, threaded and lap-joint flanges for bolted piping and equipment connections.

Indicative sizes: NPS ½–24; Class 150–2500 by type and design
Common applications: Valves, pumps, vessels, hygienic or corrosive-service piping and removable spools
Specify: Grade, type, size, class, facing, bore/schedule and finish

Stainless-steel specifications

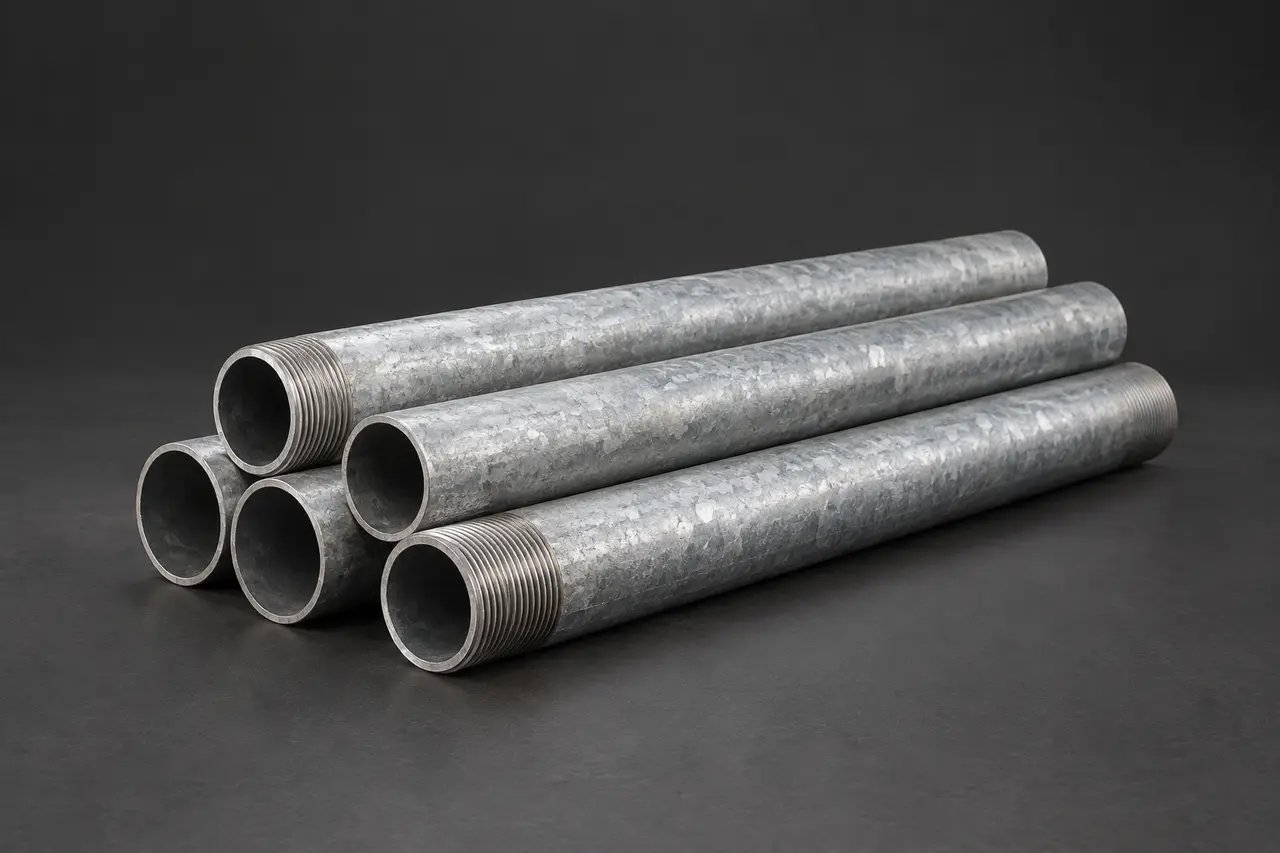

Galvanized Steel

Galvanized Steel Pipes

Steel pipe protected by a hot-dip zinc coating and supplied with plain, threaded or socketed ends as the project requires.

Indicative sizes: NPS ½–6 typical enquiry range
Common applications: Specified plumbing, utility, building-service and exposed service lines
Specify: ASTM A53 or EN 10255 basis, wall/class, ends, galvanizing and service

Galvanized specifications

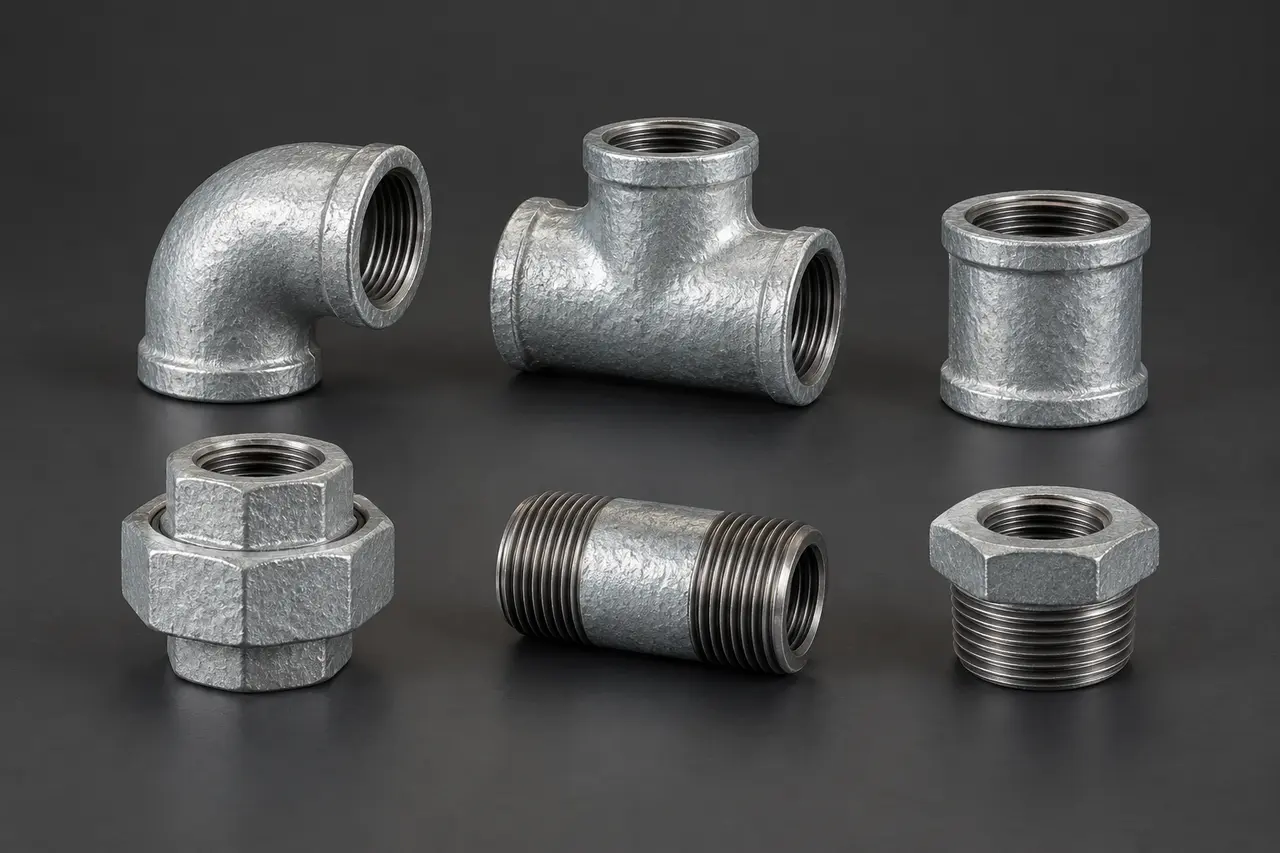

Complete galvanized threaded elbows, tee, union, socket, nipple and bushing

Galvanized Steel

Galvanized Threaded Fittings

Hot-dip galvanized malleable-iron fittings used to change direction, branch, join, reduce or terminate compatible threaded pipework.

Indicative sizes: NPS ⅛–6 by fitting; unions commonly NPS ½–4
Common applications: Specified plumbing, utilities and general building-service connections
Specify: Fitting form, run/branch sizes, BSPT or NPT thread, standard and coating

Galvanized specifications

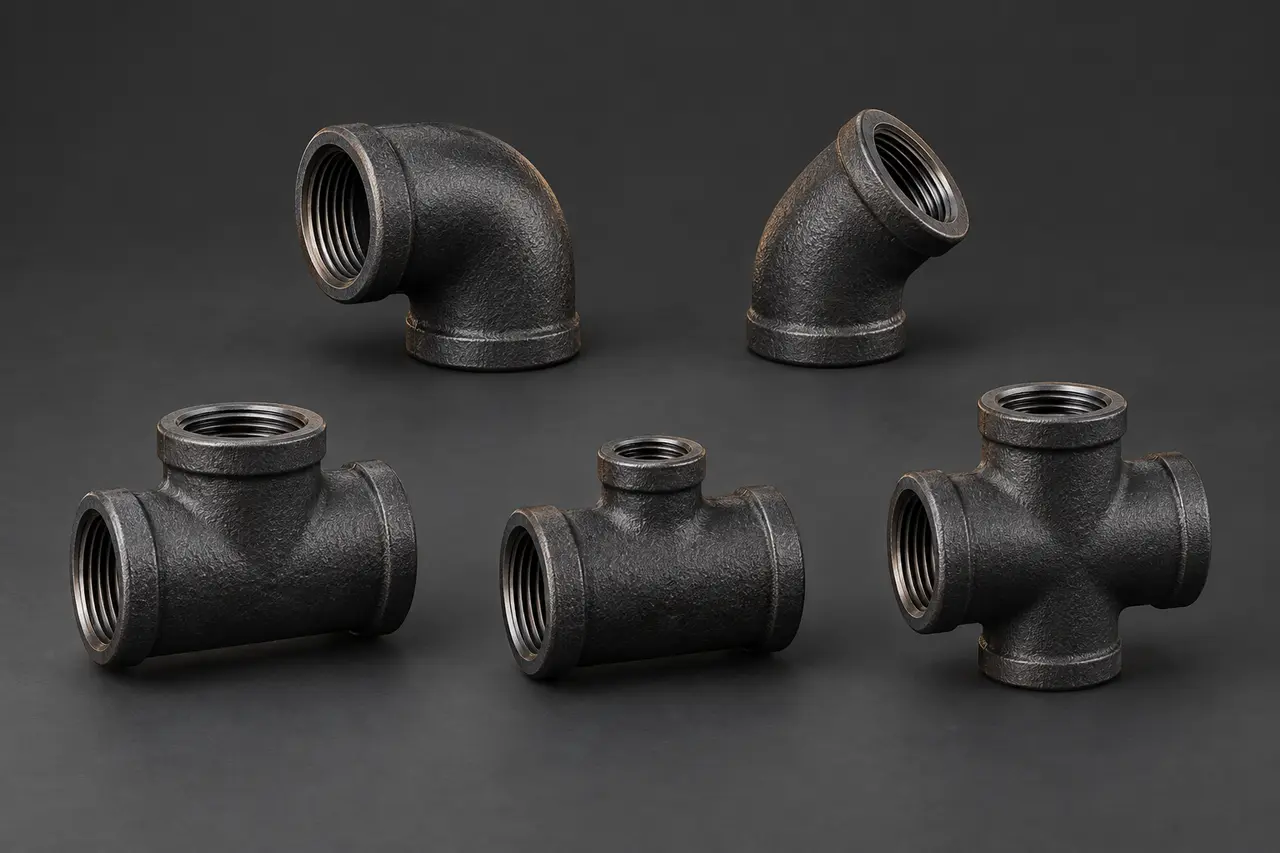

Complete black malleable iron elbows, tees and cross

BMI Threaded Fittings

Elbows, Tees & Crosses

Black malleable-iron directional and branch fittings with female or male/female threaded configurations.

Indicative sizes: NPS ⅛–6 by fitting and manufacturer
Common applications: Threaded utility, compressed-air, gas or fire-service lines where approved
Specify: 45°/90° elbow, equal/reducing tee or cross, connection genders, sizes and NPT/BSPT thread

BMI specifications

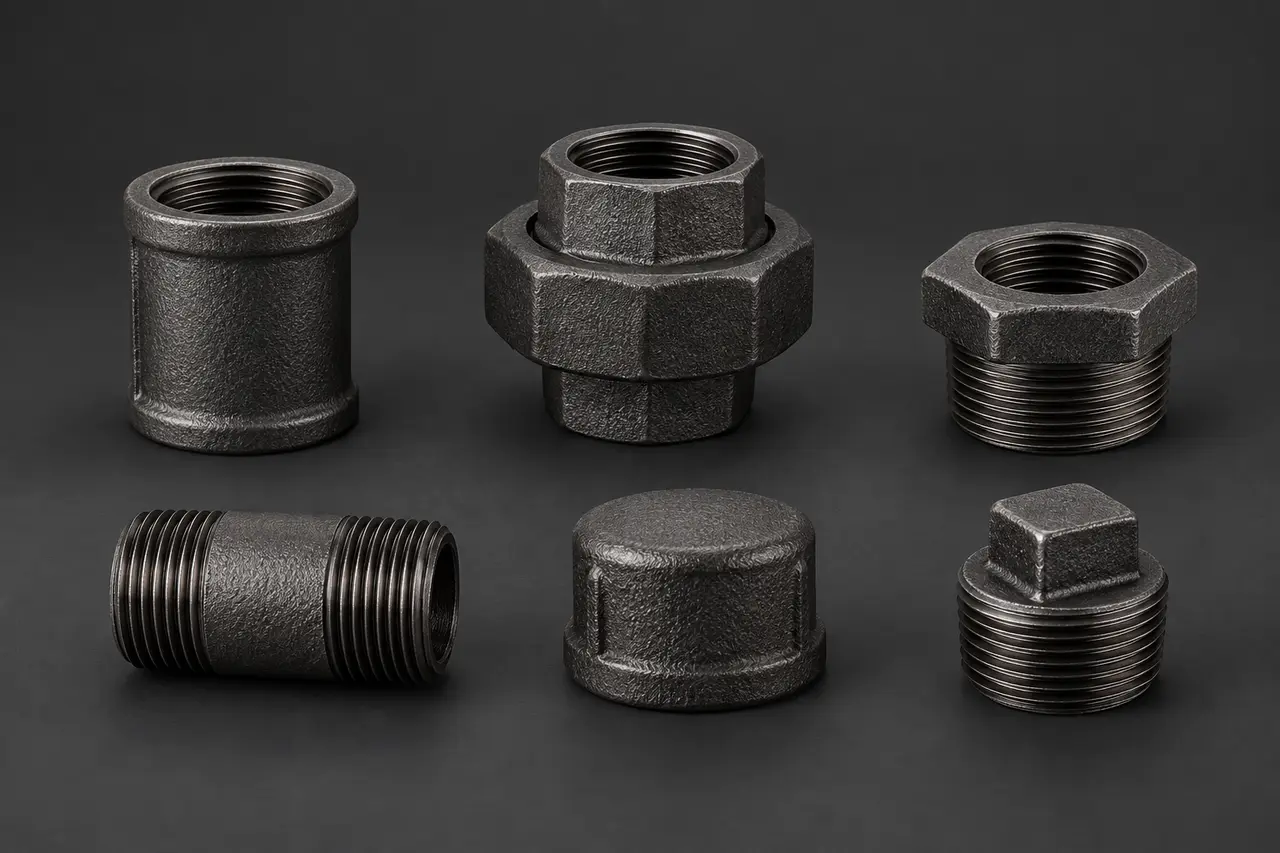

Complete black malleable iron sockets, union, bush, nipple, cap and plug

BMI Threaded Fittings

Joining, Reducing & Termination

Sockets, unions, bushes, nipples, caps and plugs used to connect, dismantle, reduce or close black threaded pipework.

Indicative sizes: NPS ⅛–6 by item; nipple length and wall stated separately
Common applications: Threaded utility, compressed-air, gas and service-piping assemblies where specified
Specify: Exact form, sizes in correct order, seat type, thread standard, nipple length and quantity

BMI specifications

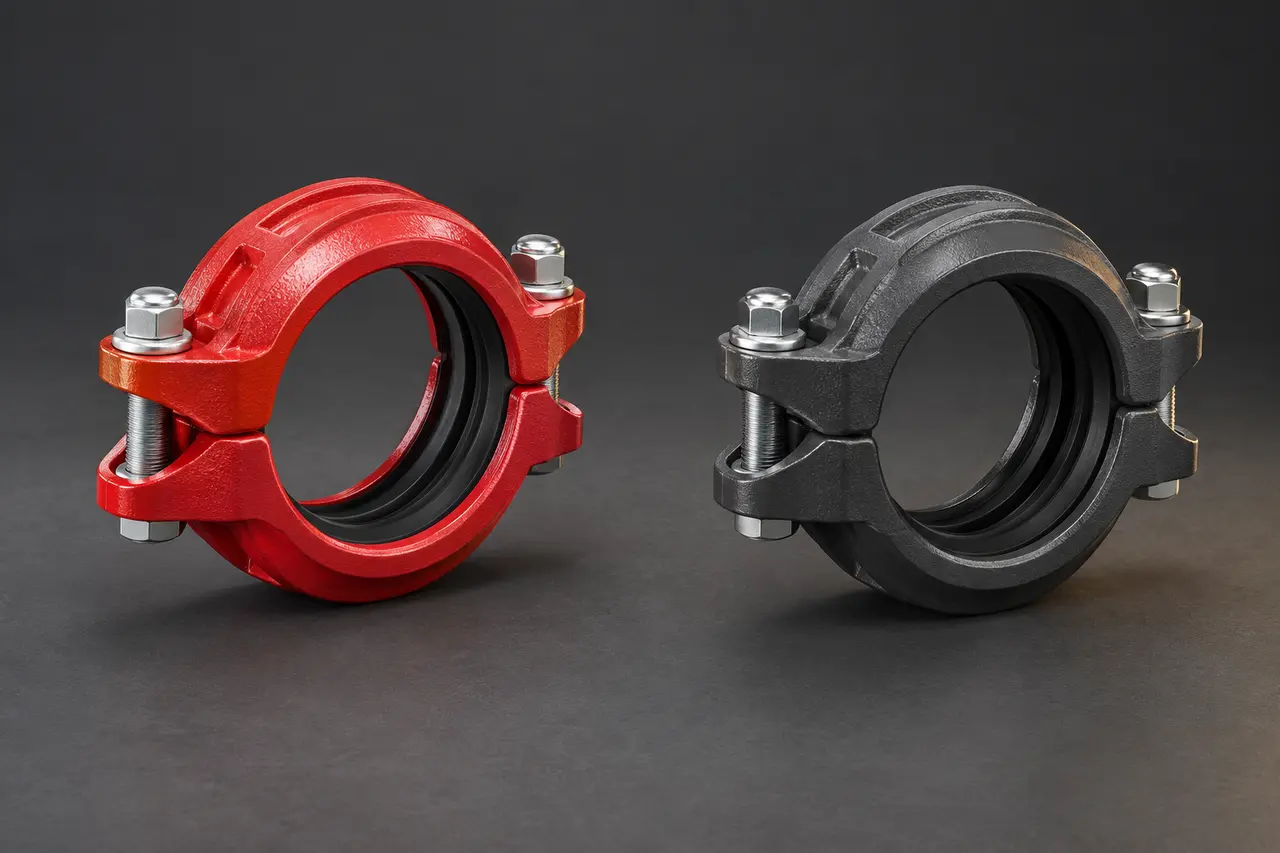

Complete rigid and flexible grooved pipe couplings

Grooved Systems

Rigid & Flexible Couplings

Bolted housings and an elastomeric gasket that engage prepared pipe grooves; rigid models restrain movement while flexible models permit limited movement.

Indicative sizes: 1–12 in common project range; extended systems by manufacturer and enquiry
Common applications: Chilled water, fire protection, domestic water and utility piping where approved
Specify: Pipe OD and material, groove profile, pressure, gasket compound, coating and approval

Grooved-system specifications

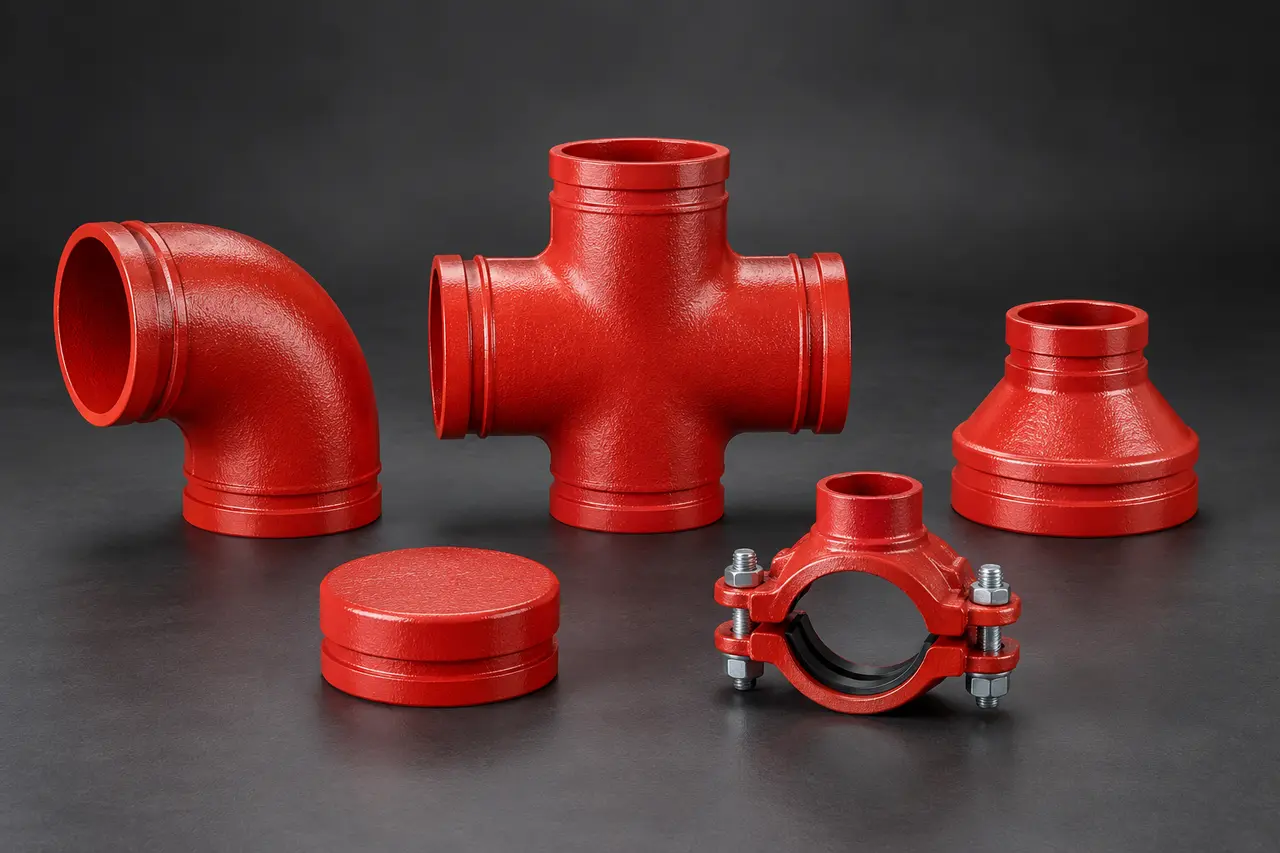

Complete grooved elbow, tee, reducer, cap and mechanical outlet

Grooved Systems

Fittings & Mechanical Outlets

Grooved elbows, tees, reducers, caps, flange adapters and branch outlets designed as compatible parts of the selected mechanical joining system.

Indicative sizes: ¾–24 in, product- and system-dependent; outlets by run and branch size
Common applications: HVAC, fire protection, water and prefabricated mechanical pipework
Specify: Configuration, run/branch sizes, material, groove system, pressure, coating and approval

Grooved-system specifications

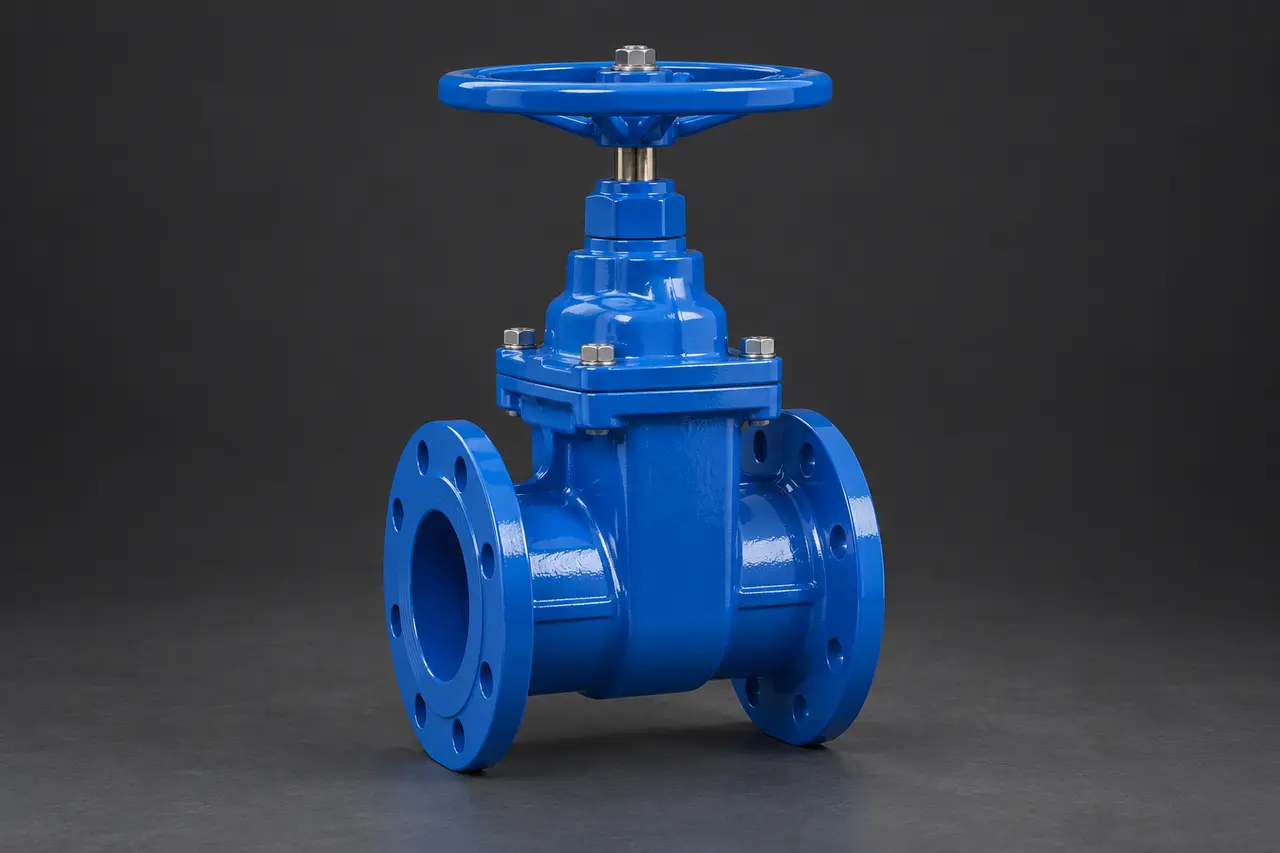

Complete blue epoxy-coated flanged gate valve

Valves & Strainers

Gate Valves

Linear isolation valves that raise a gate or wedge out of the flow path; normally selected for fully open or fully closed service rather than throttling.

Indicative sizes: ½–24 in typical; construction and larger sizes by manufacturer
Common applications: Water distribution, HVAC, fire protection and industrial isolation duties
Specify: Body/trim/seat, size, rating, ends, stem arrangement, operator and required approval

Valve selection guide

Valves & Strainers

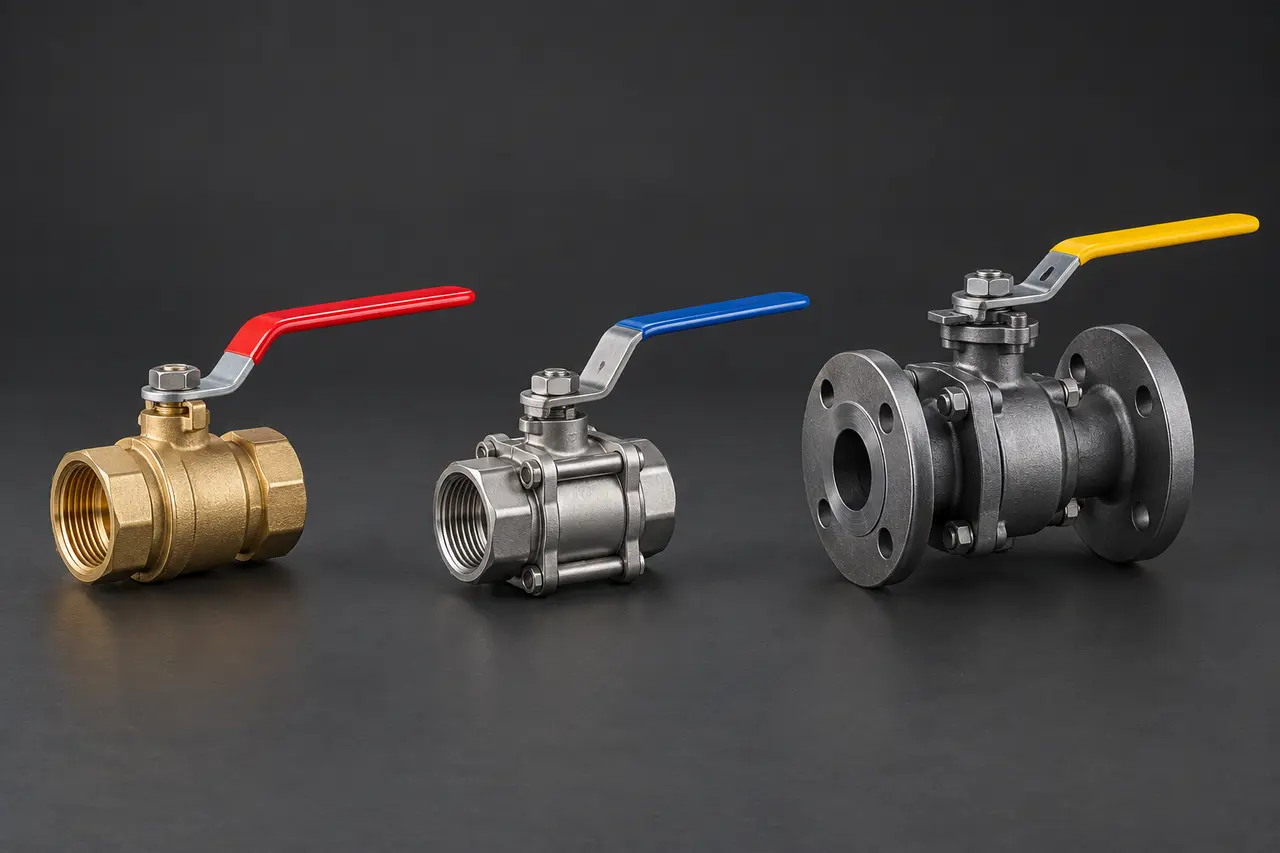

Ball Valves

Quarter-turn isolation valves using a bored rotating ball to provide fast shut-off and low flow resistance when fully open.

Indicative sizes: ¼–12 in by design and end connection
Common applications: Water, gas, compressed air, utilities and process isolation subject to material compatibility
Specify: Body, ball/stem, seat, port, pressure/temperature, ends, operator and fire-safe requirement

Valve selection guide

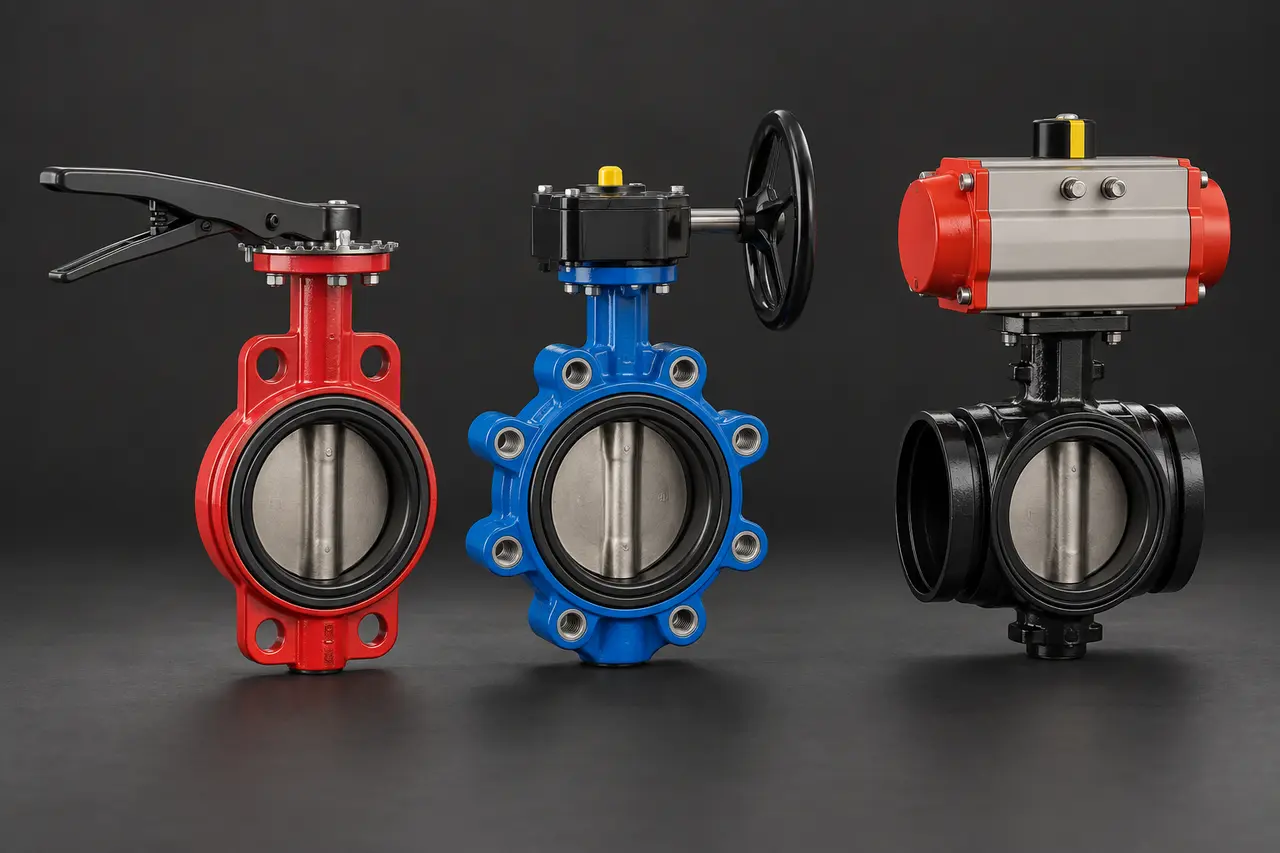

Valves & Strainers

Butterfly Valves

Compact quarter-turn valves using a rotating disc for isolation or limited regulation in larger-bore piping.

Indicative sizes: 2–24 in typical; larger sizes by model
Common applications: HVAC water, water distribution, fire protection and general industrial systems
Specify: Wafer/lug/flanged/grooved body, disc, stem, seat, rating, operator and approval

Valve selection guide

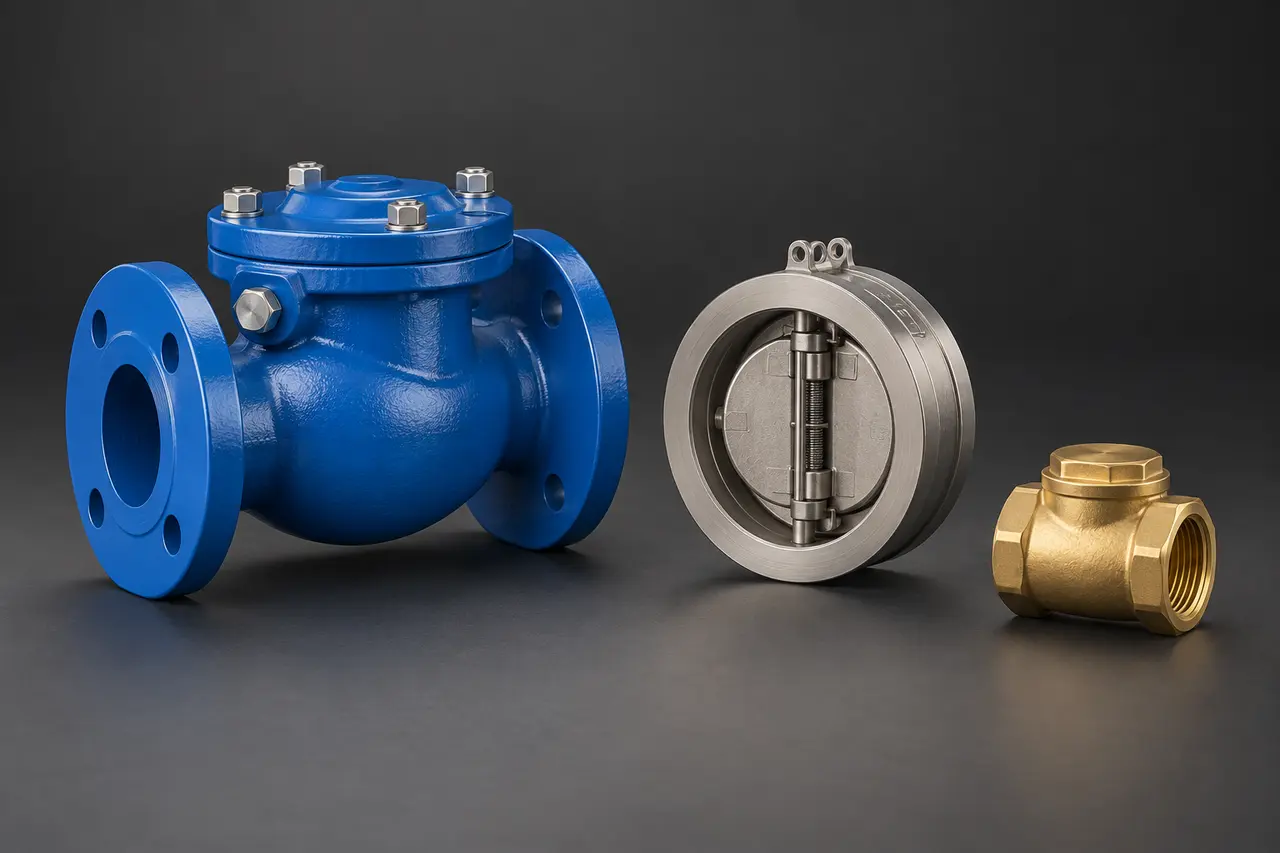

Complete swing, wafer and threaded check valves

Valves & Strainers

Check & Foot Valves

Automatic non-return valves that allow flow in one direction and close when the flow reverses; foot valves add an inlet strainer for pump suction service.

Indicative sizes: ½–24 in by swing, dual-plate, silent, threaded, flanged or grooved type
Common applications: Pump discharge and suction, water, HVAC, utility and process systems
Specify: Type, installation orientation, body/trim/seat, cracking pressure, rating and ends

Valve selection guide

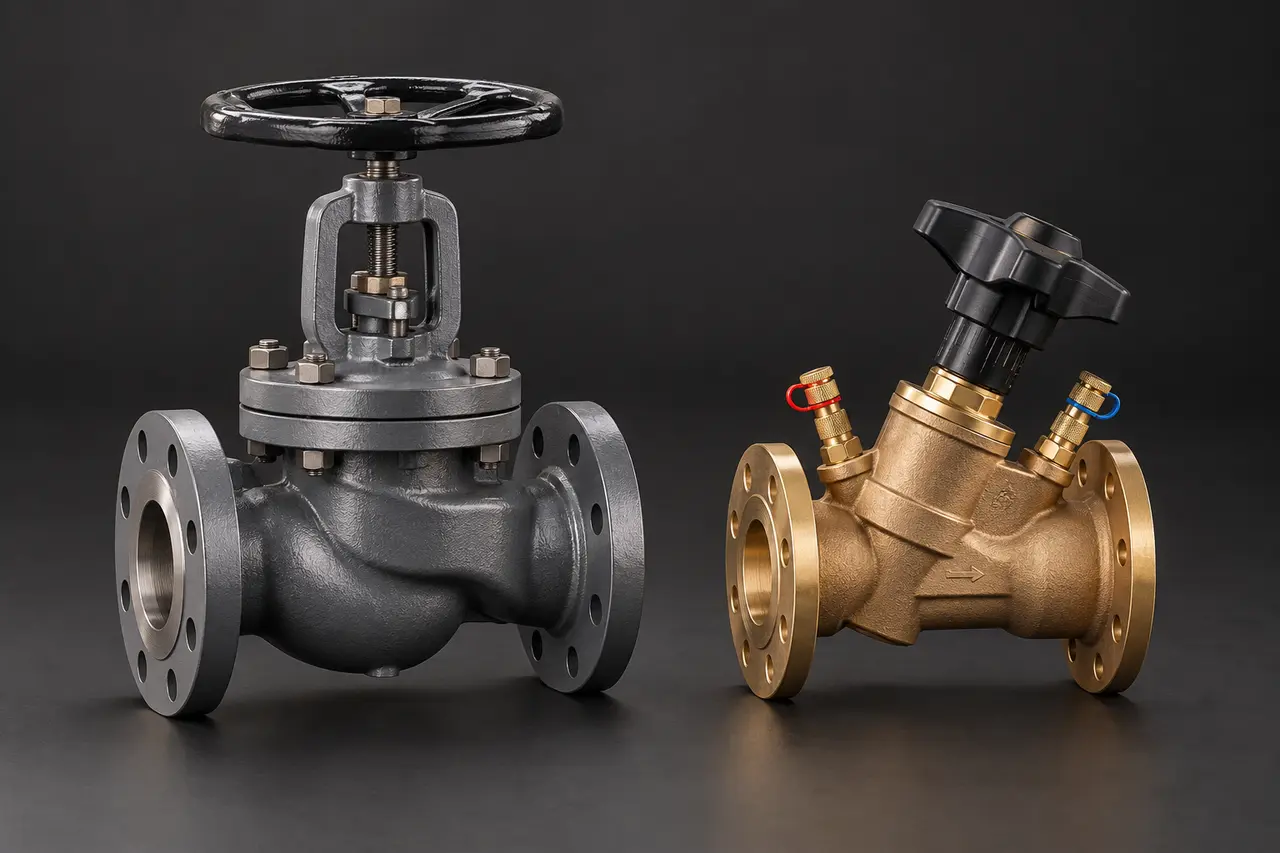

Complete globe valve and hydronic balancing valve

Valves & Strainers

Globe & Balancing Valves

Globe-pattern valves regulate or isolate flow; balancing valves establish and verify the designed flow rate in hydronic branches.

Indicative sizes: ½–12 in by construction and manufacturer
Common applications: HVAC hydronic balancing, process regulation, bypass lines and controlled isolation
Specify: Required function, flow coefficient, body/trim/seat, rating, ends and test points

Valve selection guide

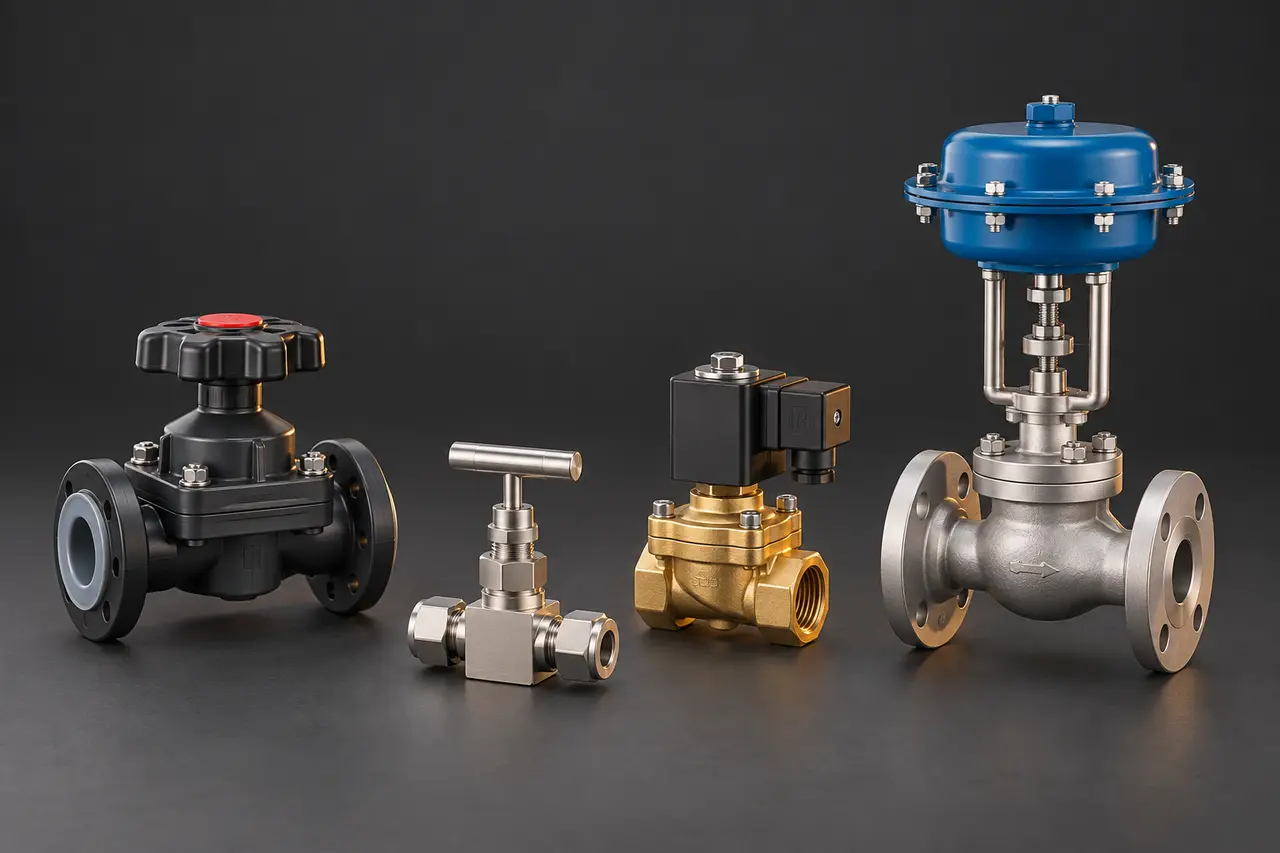

Complete diaphragm, needle, solenoid and actuated control valves

Valves & Strainers

Specialist & Control Valves

Diaphragm, needle, solenoid and actuated control valves selected for precise regulation, automated shut-off or service-specific media handling.

Indicative sizes: Model- and service-dependent; selected from the approved technical duty
Common applications: HVAC controls, dosing, instrumentation, automation, chemical and utility systems
Specify: Fluid, flow/pressure duty, temperature, materials, ends, fail position, power and signal

Valve selection guide

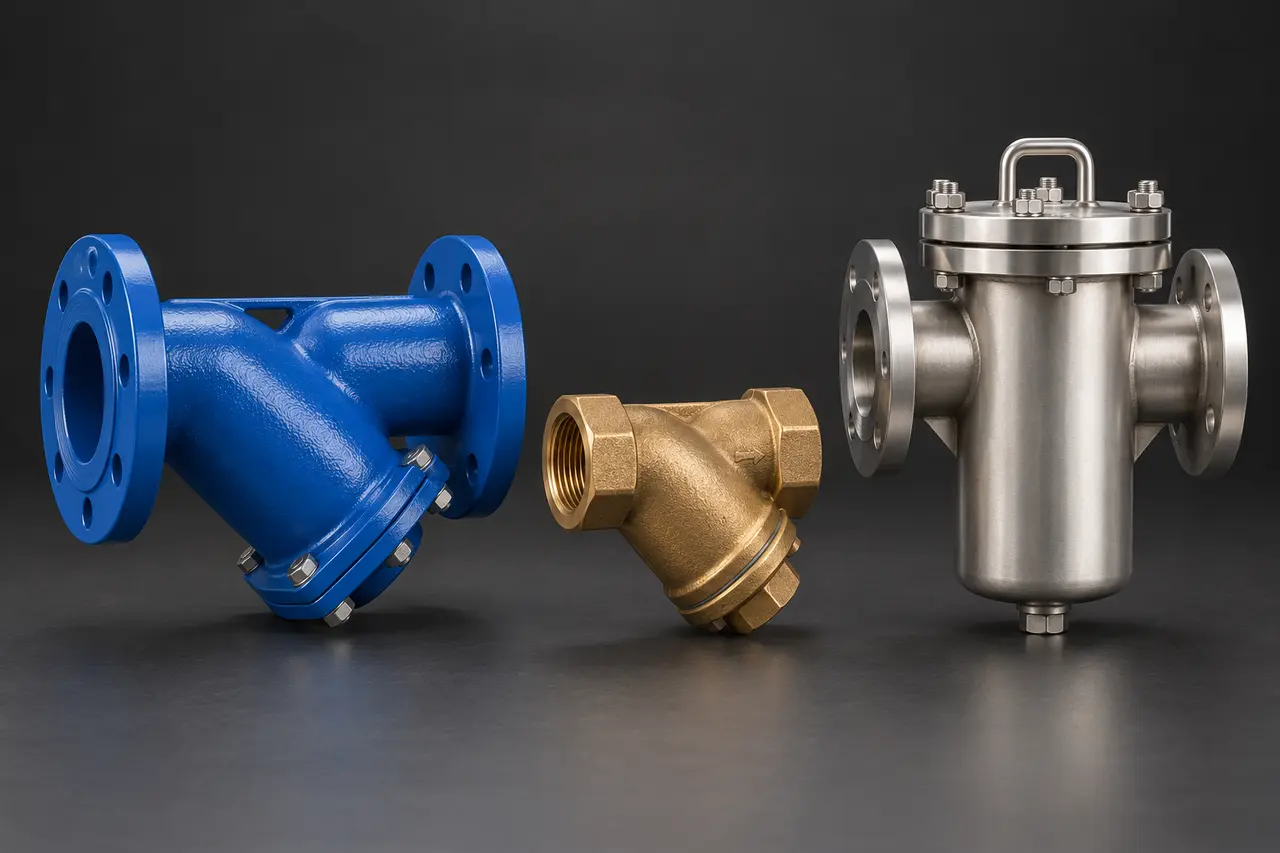

Complete ductile-iron, bronze and stainless steel strainers

Valves & Strainers

Y & Basket Strainers

Removable-screen devices that capture debris before it reaches pumps, meters, control valves or other sensitive equipment.

Indicative sizes: ½–24 in by Y or basket type and connection
Common applications: HVAC water, pumping systems, process utilities and equipment-protection points
Specify: Body, screen material and perforation/mesh, rating, ends, drain and allowable pressure drop

Valve and strainer guide

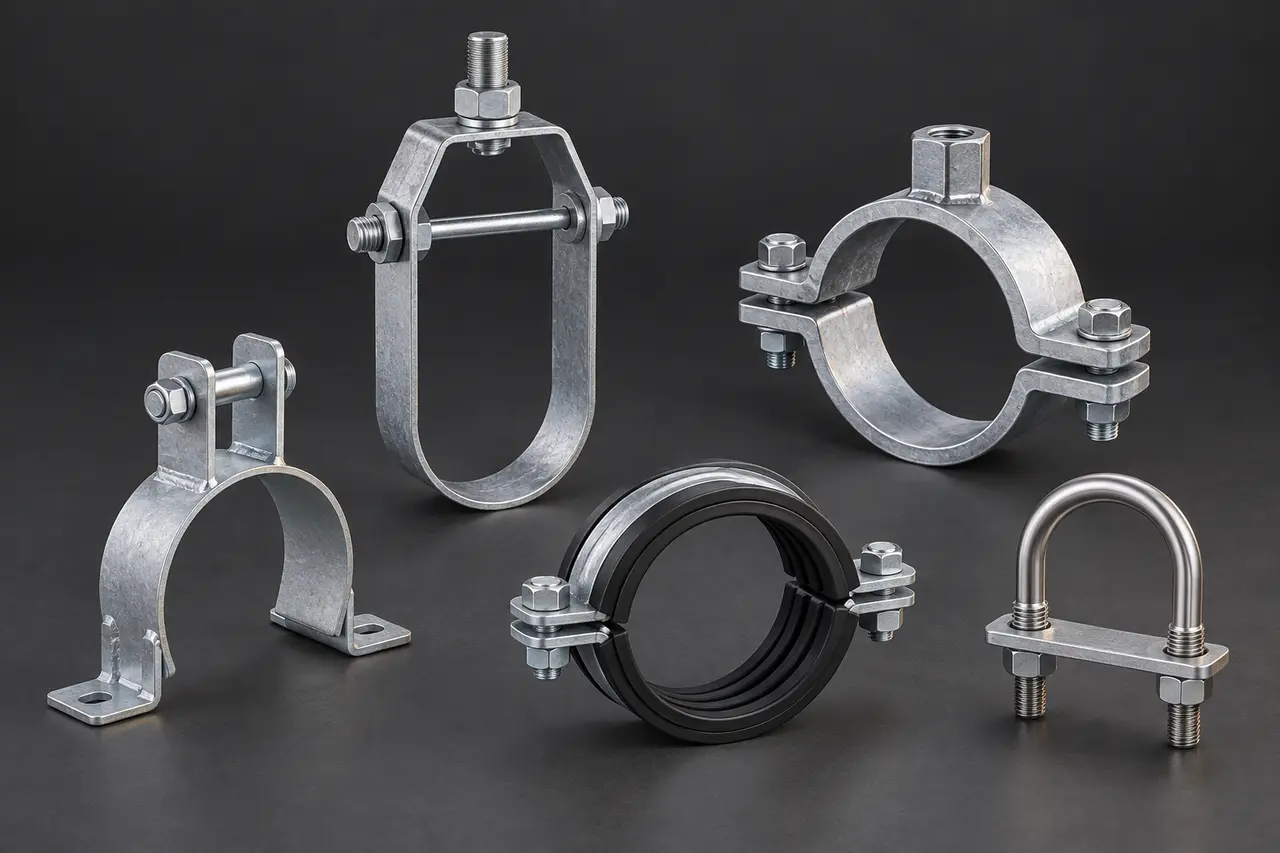

Complete clevis hanger, riser clamp, split-ring clamps and U-bolt

Installation Systems

Pipe Hangers & Clamps

Components that suspend, restrain or guide piping from structure, selected by actual pipe outside diameter, load, insulation and environment.

Indicative sizes: ½–30 in for common hangers; heavy clamps may extend to 42 in by series
Common applications: HVAC, plumbing, fire protection, drainage and industrial pipe support
Specify: Hanger/clamp type, pipe OD, load, lining, insulation, rod size, finish and approved detail

Installation-system guide

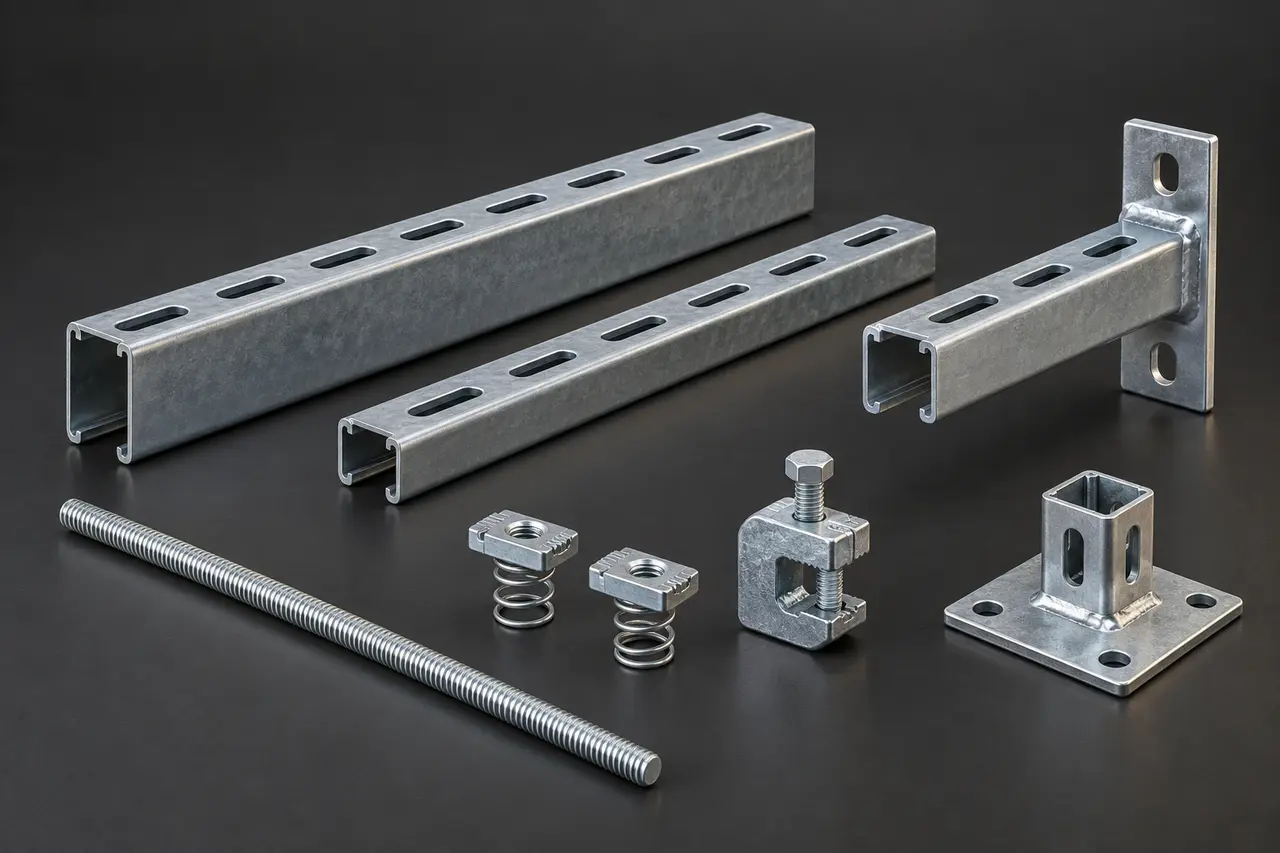

Complete strut channels, bracket, threaded rod and framing hardware

Installation Systems

Strut Framing & Hardware

Modular slotted channel, brackets, threaded rod, nuts, beam clamps and base plates assembled into mechanical and electrical support frames.

Indicative sizes: 41×41 and 41×21 mm common profiles; lengths, gauges and hardware by system
Common applications: Pipe racks, equipment frames, cable supports, trapezes and coordinated MEP services
Specify: Profile, thickness, slot pattern, length, design load, hardware, finish and approved support detail

Installation-system guide

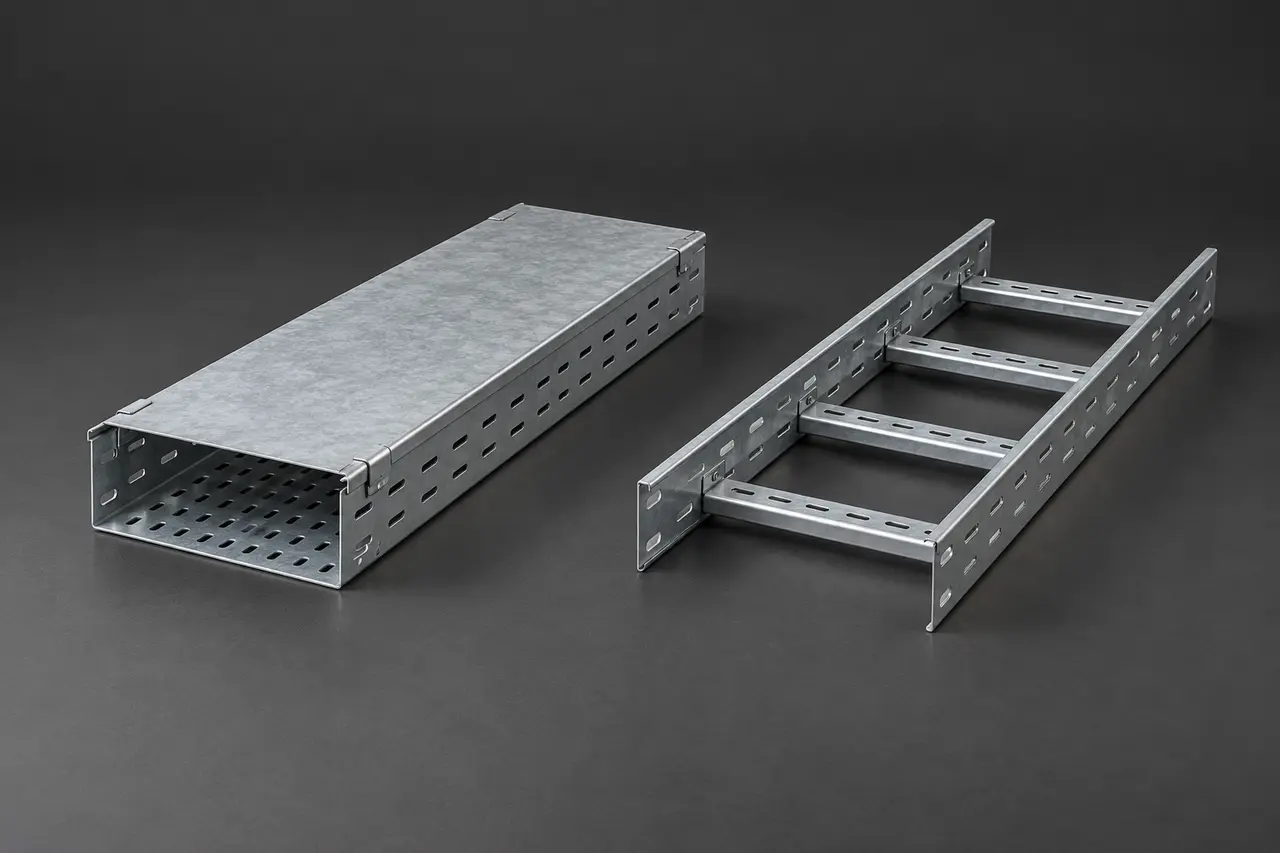

Complete galvanized cable tray and cable ladder sections

Installation Systems

Cable Trays & Ladders

Open metallic containment systems that route and support power, control and data cables while allowing access and heat dissipation.

Indicative sizes: Width, side depth, thickness, rung spacing and length to the approved cable schedule
Common applications: Electrical rooms, risers, plant rooms, industrial facilities and above-ceiling cable routes
Specify: Tray/ladder type, dimensions, load class, material, finish, cover and required fittings

Installation-system guide

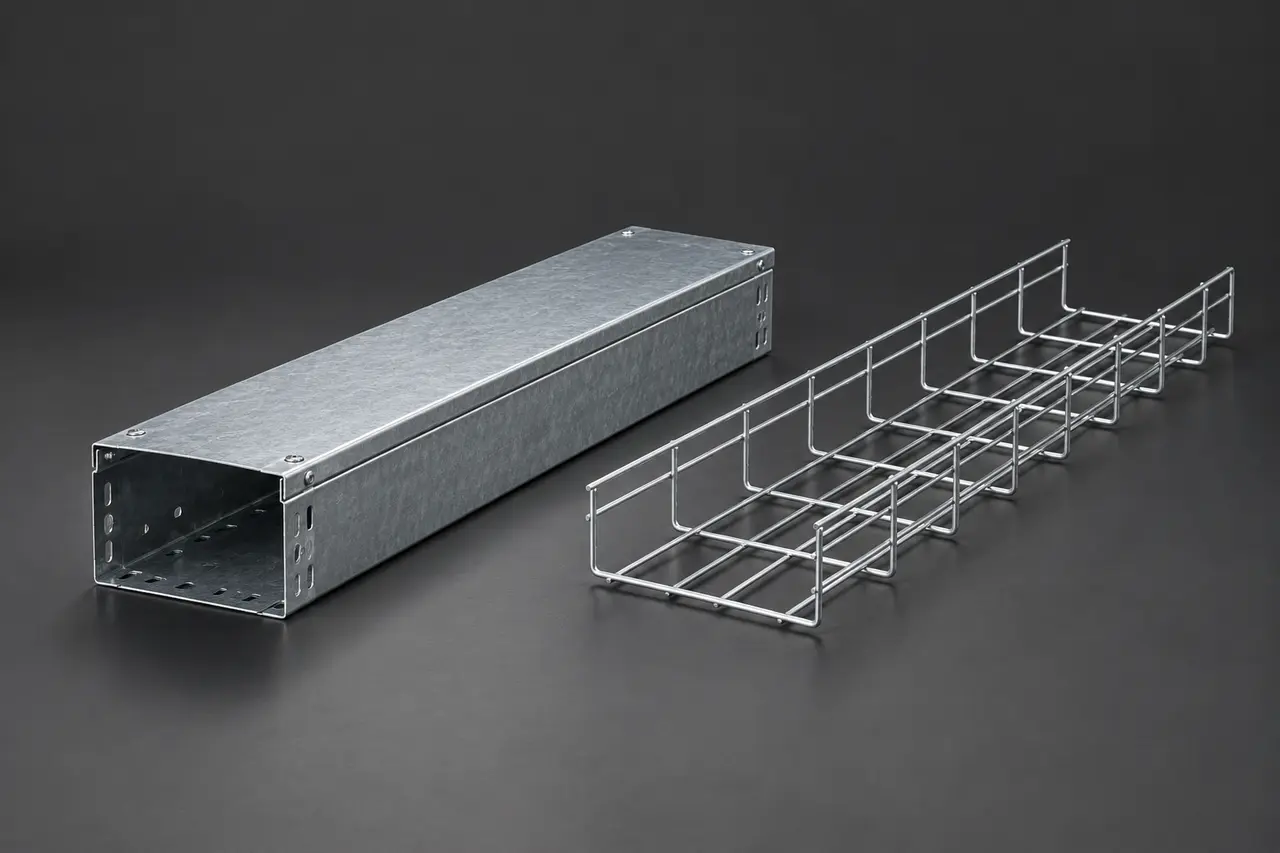

Complete galvanized metal trunking and wire-mesh cable basket sections

Installation Systems

Trunking & Wire Basket

Enclosed sheet-metal trunking protects routed cables; open wire basket provides lightweight, flexible support for data and smaller cable services.

Indicative sizes: Width, depth, compartments, wire gauge and length by approved system
Common applications: Commercial electrical distribution, data rooms, low-voltage routes and accessible service areas
Specify: Type, dimensions, thickness/gauge, compartments, cover, finish, cable load and fittings

Installation-system guide

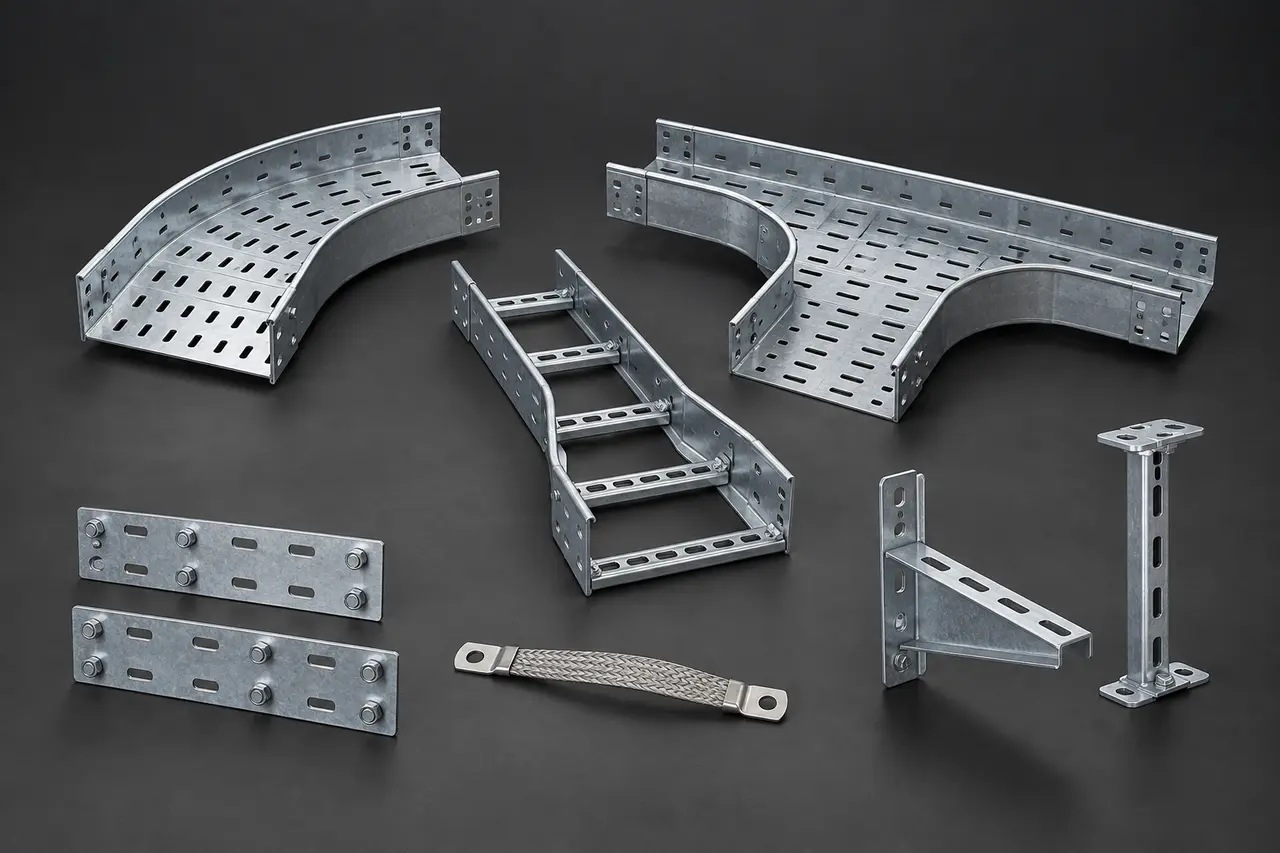

Complete cable tray bends, tee, reducer, splice plates and support accessories

Installation Systems

Cable-Management Accessories

Matched bends, tees, crosses, reducers, splice plates, supports, drop-outs and bonding components that complete the selected containment route.

Indicative sizes: Matched to the selected tray, ladder, trunking or basket series
Common applications: Horizontal/vertical direction changes, branches, reductions, joints, supports and earthing continuity
Specify: Containment series and dimensions, fitting angle/form, material, finish, support and bonding details

Installation-system guide

Important: These are indicative procurement ranges, not live-stock commitments. The project specification, engineer’s approval and manufacturer’s current datasheet remain controlling. Exact brand, country of origin, certification, pressure/temperature rating and lead time are stated in the quotation.
